Application: Suitable for 8-425, 9mm, 10-425, 11mm snap vials
Material: Glass for Insert, Polymer for feet
Dimensions: 5x29mm,5x31mm/5.7x29mm,5.7x31mm
Capacity: 150-250uL
Qty/Pack: 100pcs/pack
Payment: T/T
MOQ: 1 pack
Details
| Products name | Micro-Inserts |
| Insert type | Conical Bottom, Flat Bottom, Mandrel Interior & Polymer Feet |
| Material | Glass for Insert, Polymer for feet |
| Suitable | 8-425, 9mm, 10-425, 11mm snap vials |
| Dimension | 29*5mm,31*5mm/29*5.7mm,31*5.7mm |
| Capacity | 150-250uL |
| Package | 100pcs/Pack |
Description
Micro-Inserts from Aijiren Technology, Inc with high quality and favorable price. Zhejiang Aijiren is a manufacturer of Laboratory consumables. We supply autosampler vials, Inserts, Crimper and Syringe Filters at factory price.
1. Different bottom shape for choosing
2. Suitable for 8-425, 9mm,10-425, 11mm snap vials
3. Micro-Inserts are manufactured of clear glass
Features
1. Micro-Inserts can be used on all 1.5ml vials
2. Effectively relieves the pressure of syringe
3. PolySpring inserts are self aligning
Technical Parameter
1. 8-425 Vials Micro-Inserts
 |
 |
 |
|
| Part No. | I250 | IV150-I(Economy) IV150 |
IP150-I(Economy) IP150 |

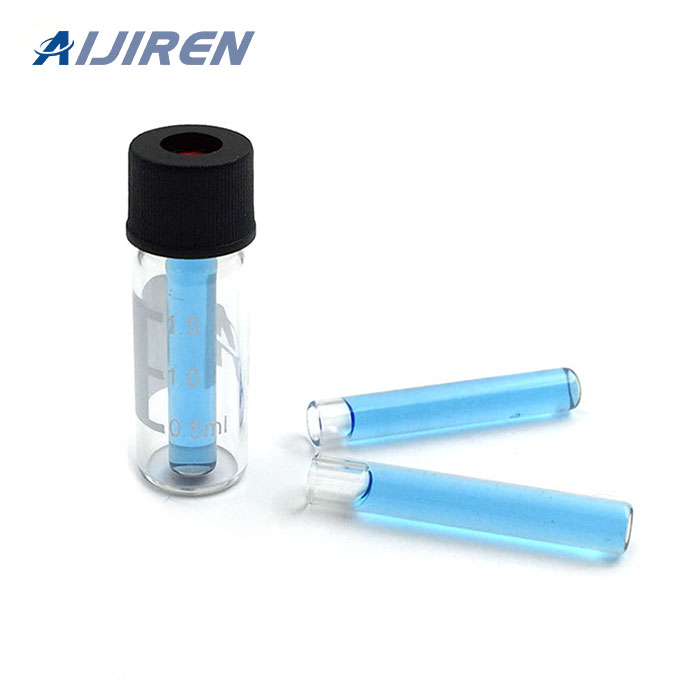

| Description | 250uL Micro-Insert, 31*5mm, Clear, Flat Bottom; suits for 8-425 Vials |
150uL Conical Micro-Insert, 31*5mm; suits for 8-425 Vials |

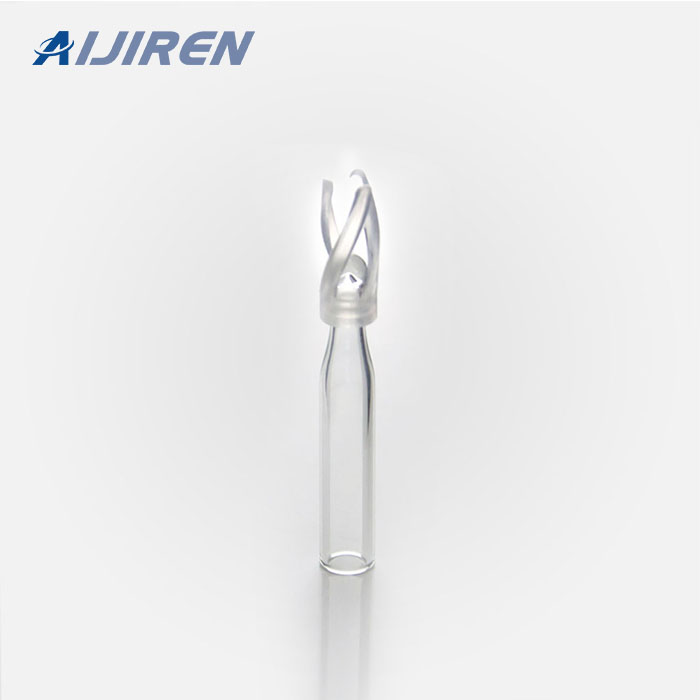

150uL Micro-Insert with Mandrel Interior & Polymer Feet, 29*5mm; suits for 8-425 Vials |
2. 9mm Vilas Micro-Inserts
|
|
|
|
| Part No. | I300 | IV250-I(Economy) IV250 |
IP250-I(Economy) IP250 |
| Description | 300uL Micro-Insert, 31*6mm Clear, Flat Bottom, Suits for 9mm Vials |
250uL Conical Micro-Insert, 31*5.7mm, Suits for 9mm Vials |
250uL Micro-Insert with Mandrel Interior & Polymer Feet, 29*5.7mm, Suits for 9mm Vials |
3. 10-425 Vilas Micro-Inserts
|
|
|
|
| Part No. | I300 | IV250-I(Economy) IV250 |
IP250-I(Economy) IP250 |
| Description | 300uL Micro-Insert, 31*6mm Clear, Flat Bottom, Suits for 10-425 Vials |
250uL Conical Micro-Insert, 31*5.7mm, Suits for 10-425 Vials |
250uL Micro-Insert with Mandrel Interior, & Polymer Feet, 29*5.7mm, Suits for 10-425 Vials |
4. 11mm Snap Ring Vials Micro-Inserts
|
|
|
|
| Part No. | I300 | IV250-I(Economy) IV250 |
IP250-I(Economy) IP250 |
| Description | 300uL Micro-Insert, 31*6mm Clear, Flat Bottom, Suits for 11mm Snap Ring Vials |
250uL Conical Micro-Insert, 31*5.7mm, Suits for 11mm Snap Ring Vials |
250uL Micro-Insert with Mandrel Interior & Polymer Feet, 29*5.7mm, Suits for 11mm Snap Ring Vials |
Materials of construction: pp chamber, PP plunger outer housing, borosilicate glass plunger inner storage vial, silicone septa with PTFE liner, PP cap
Vial Size: 12 x 32 mm
Pore Size: 0.22um and 0.45um
Capacity:
Unfiltered sample chamber: 500 µL
Filtered sample chamber: 330 µL
Maximum operating temperature: 122°F (50°C)
Minimum filtering sample volume: 220 µL placed into the chamber to obtain a 50 µL filtered sample
Material: USP Type 1, Class A, 33 Borosilicate Glass
Volume: 2ml (standard volume) 1.5ml(actual volume)
Application: HPLC and GC system
Dimensions: 11.6 x 32mm
Neck Diameter: 8mm
Qty/Pack: 100pcs/pack
Payment: T/T
MOQ: 1pack
